Distribution & Collection Systems

BOTTOM HUB & STACK DIFFUSER MODELS

UKL offers molded distribution systems, designed to be adaptable for any make of FRP tank. Depending on the diameter of the tank, various sizes of laterals can be offered.

Our distribution systems have been manufactured using the best engineering materials to ensure maximum life of the product. UKL design team has ensured that these distribution systems are easy to assemble in the tanks and the uniform distribution and collection is ensured.

Salient Features

Suitable for any make of FRP tank
Various lateral sizes available for different tank sizes
Unique ¼ turn cam-lock hub and laterals make assembly and installation easy and secure

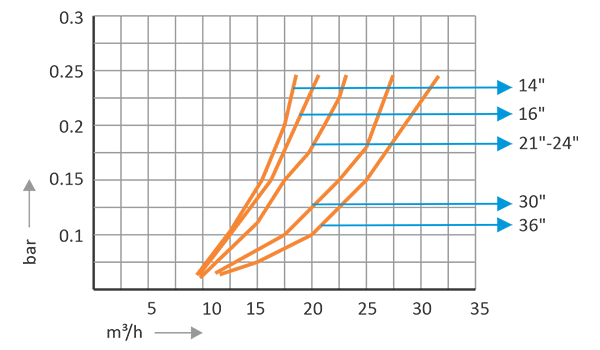

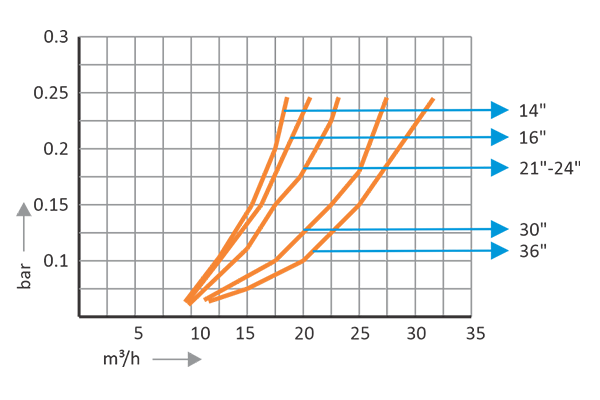

Unique slot design assures a uniform, vertical distribution of flow and pressure drop 5psi at designated flow rates
Temperature rating is 45 °C

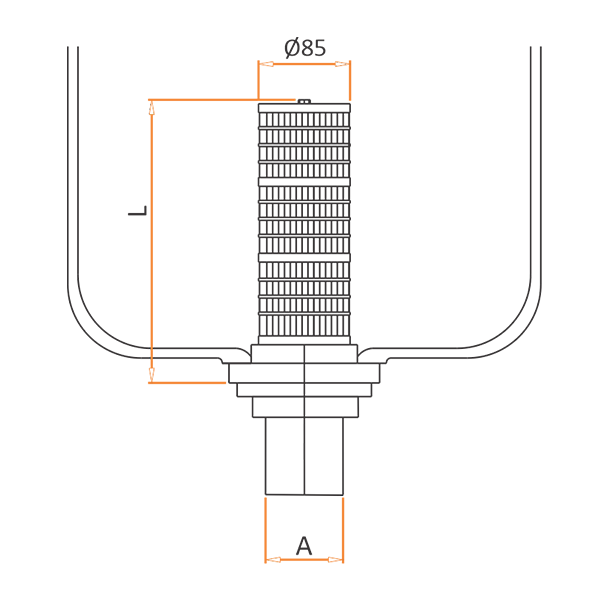

STACK DIFFUSER FOR TOP/BOTTOM

for Tank Sizes 14`` - 36``

frp
frp
frp
Type A (mm) L (mm) Tank Size Inches (mm) Top Opening
D85 2″BSP (F) 175 14″-36″(350-900mm) 4″-8UN

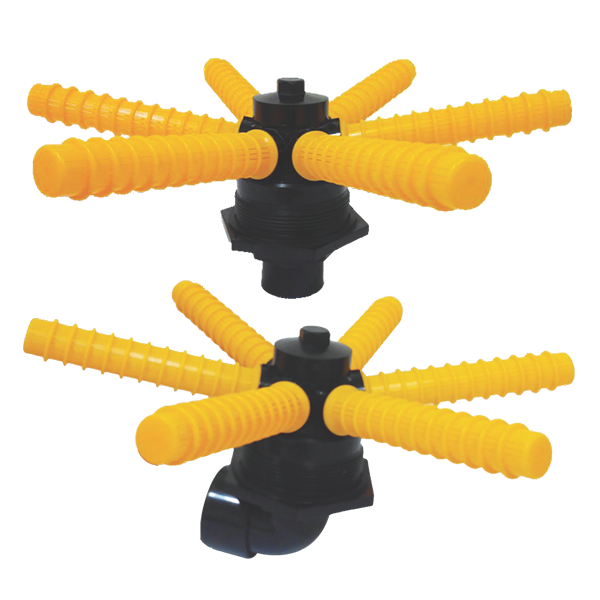

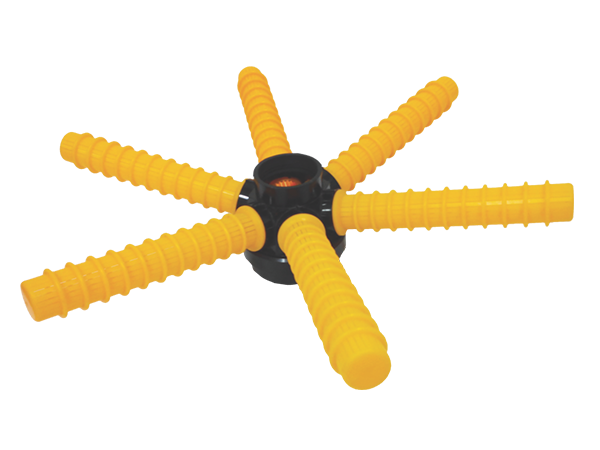

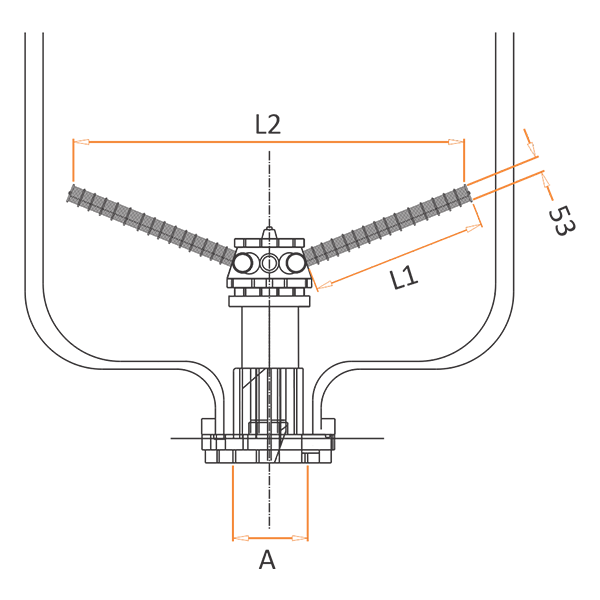

TOP MOUNT DISTRIBUTOR 6 LATERALS - A SERIES

for Tank Sizes 14`` - 36``

DIMENSIONS
Type A (mm) L1 (mm) L2 (mm) Tank Size Inches (mm) Top Opening
A-0.25-6245 50 81 245 14″(350mm) 4″-8UN
A-0.25-6310 50 112 310 16″(400mm) 4″-8UN
A-0.25-6368 50 144 368 21″(550mm) 4″-8UN
A-0.25-6368 50 112 310 24″(600mm) 4″-8UN
A-0.25-6430 50 175 430 30″(750mm) 4″-8UN
A-0.25-6550 50 235 550 36″(900mm) 4″-8UN

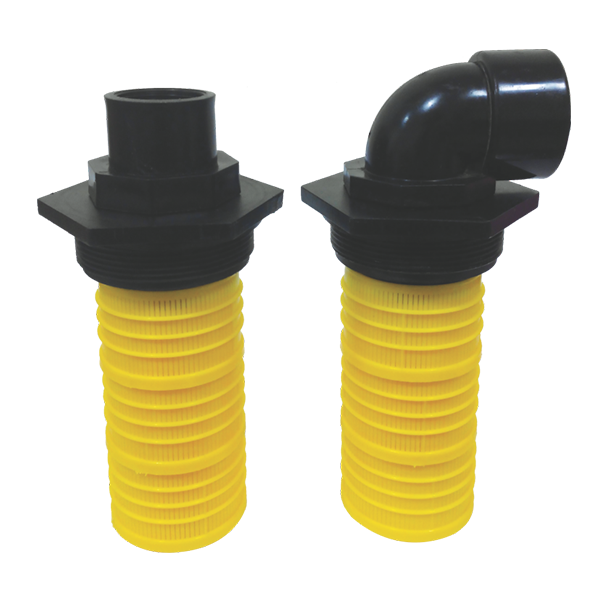

SIDE MOUNT DISTRIBUTOR 6 LATERALS - A SERIES

for Tank Sizes 14`` - 36`` with Elbow & Straight Connection

DIMENSIONS
Type A (mm) L1 (mm) L2 (mm) Tank Size Inches (mm) Top Opening
A-0.25-6245 2”BSP (F) 81 245 14″(350mm) 4″-8UN
A-0.25-6310 2”BSP (F) 112 310 16″(400mm) 4″-8UN
A-0.25-6368 2”BSP (F) 144 368 21″(550mm) 4″-8UN
A-0.25-6368 2”BSP (F) 112 310 24″(600mm) 4″-8UN
A-0.25-6430 2”BSP (F) 175 430 30″(750mm) 4″-8UN
A-0.25-6550 2”BSP (F) 235 550 36″(900mm) 4″-8UN

SIDE MOUNT DISTRIBUTOR 6 LATERALS - B SERIES

with Elbow & Straight Connection

DIMENSIONS
Type A (mm) L1 (mm) L2 (mm) Tank Size Inches (mm) Top Opening
B-0.25-6245 2”BSP (F) 81 245 14″(350mm) 4″-8UN
B-0.25-6310 2”BSP (F) 112 310 16″(400mm) 4″-8UN
B-0.25-6368 2”BSP (F) 144 368 21″(550mm) 4″-8UN
B-0.25-6368 2”BSP (F) 144 368 24″(600mm) 4″-8UN
B-0.25-6430 2”BSP (F) 175 430 30″(750mm) 4″-8UN
B-0.25-6550 2”BSP (F) 235 550 36″(900mm) 4″-8UN

SIDE MOUNT DISTRIBUTOR 6 LATERALS FOR FLANGES OPENING VESSELS

for Tank Sizes 16`` - 36``

DIMENSIONS
Type A (mm) L1 (mm) L2 (mm) Tank Size Inches (mm) Top Opening
B-0.25-6312 3”BSP (F) 118 312 16-24″(400-600mm) 6″FLG
B-0.25-6430 3”BSP (F) 175 430 30″(750mm) 6″FLG
B-0.25-6550 3”BSP (F) 235 550 36″(900mm) 6″FLG

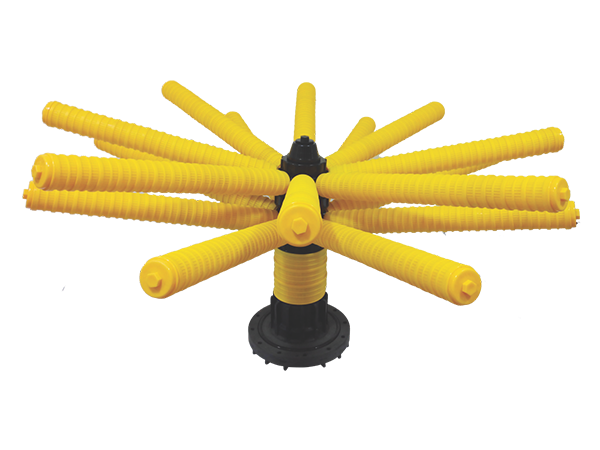

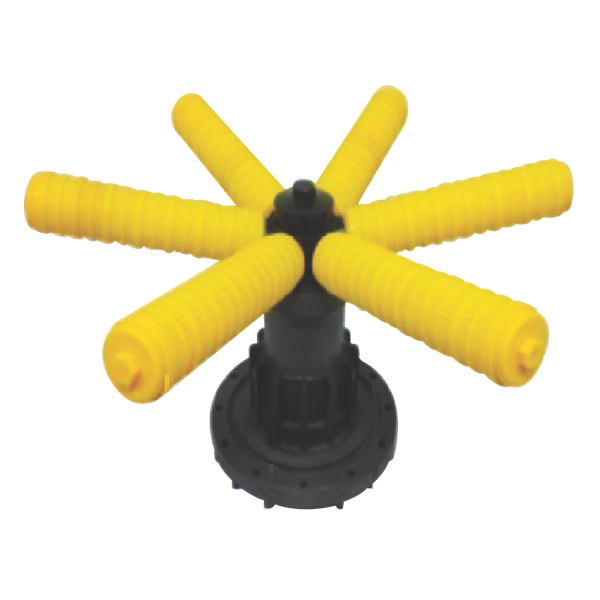

SIDE MOUNT DISTRIBUTOR 8 LATERALS

for Tank Sizes 42`` - 63``

DIMENSIONS
Type A (mm) L1 (mm) L2 (mm) Tank Size Inches (mm) Top Opening
B-0.25-8805 3”BSP (F) 360 805 42″(1050mm) 6″FLG
B-0.25-8920 3”BSP (F) 415 920 48″(1200mm) 6″FLG
B-0.25-81035 3”BSP (F) 470 1035 60″(1500mm) 6″FLG
B-0.25-81165 3”BSP (F) 545 1165 63-80″(1600-2000mm) 6″FLG

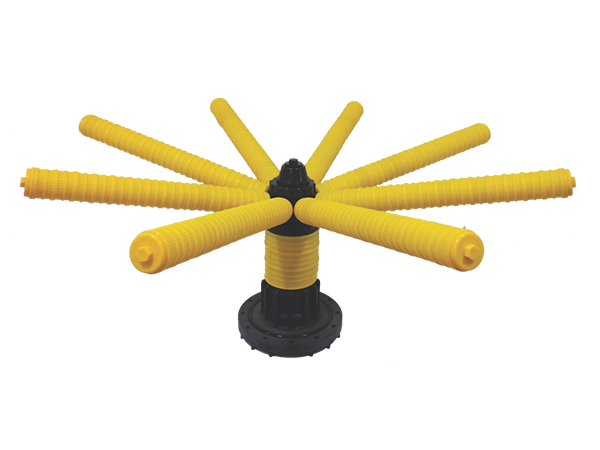

SIDE MOUNT DISTRIBUTOR 16 LATERALS

for Tank Sizes 42`` - 48``

DIMENSIONS
Type A (mm) L1 (mm) L2 (mm) Tank Size Inches (mm) Top Opening
B-0.25-8805-2 3”BSP (F) 360 805 42″(1050mm) 6″FLG
B-0.25-8920-2 3”BSP (F) 415 920 48″(1200mm) 6″FLG

SIDE MOUNT DISTRIBUTOR 16 LATERALS

for Tank Sizes 63`` - 80``

DIMENSIONS
Type A (mm) L1 (mm) L2 (mm) Tank Size Inches (mm) Top Opening
B-0.25-81035-2 3”BSP (F) 470 1035 60″(1500mm) 6″FLG
B-0.25-81165-2 3”BSP (F) 545 1165 63-80″(1600-2000mm) 6″FLG

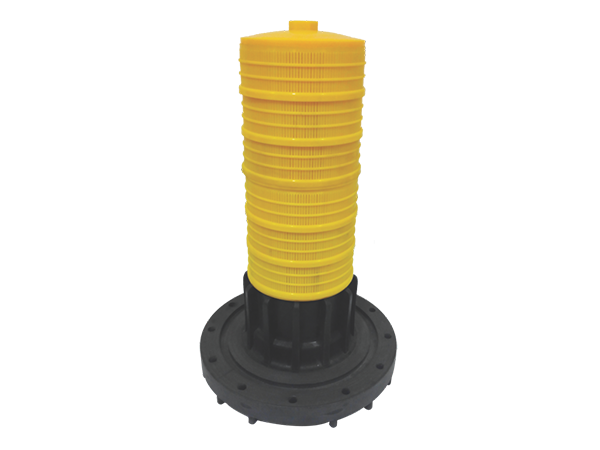

STACK DIFFUSER FOR TOP/BOTTOM FLANGED OPENING VESSELS

for Tank Sizes 24`` - 48``

DIMENSIONS
Type A (mm) L1 (mm) L2 (mm) Tank Size Inches (mm) Top Opening
B-0.25-81035-2 3”BSP (F) 375 260 24-48″(600-1200mm) 6″FLG

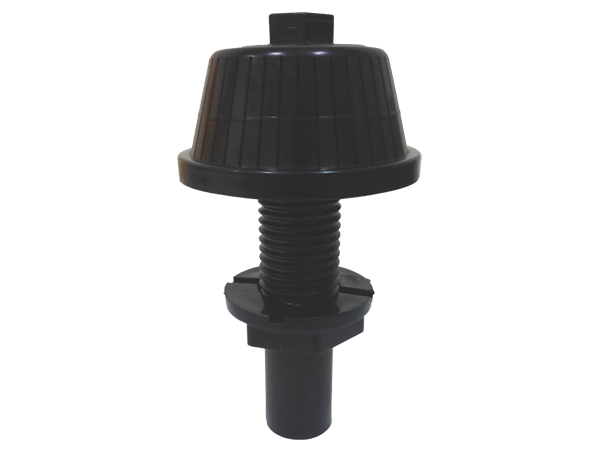

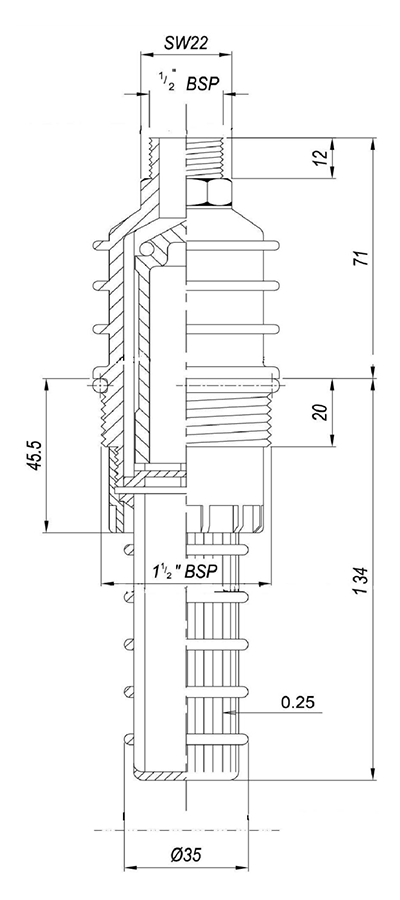

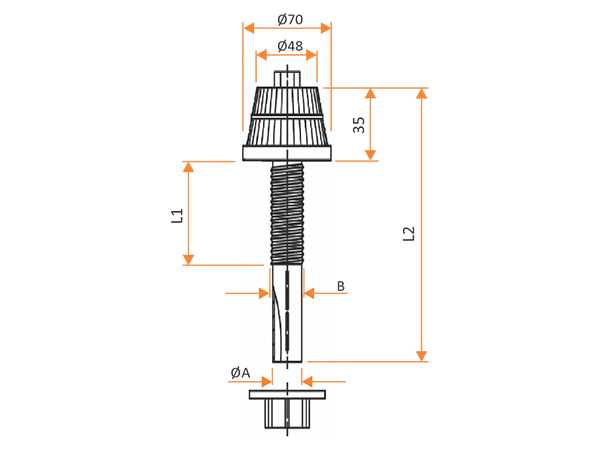

FILTER NOZZLES

DIMENSIONS
Type A (mm) B (mm) L1 (mm) L2 (mm)
H202 20 M26 50 120

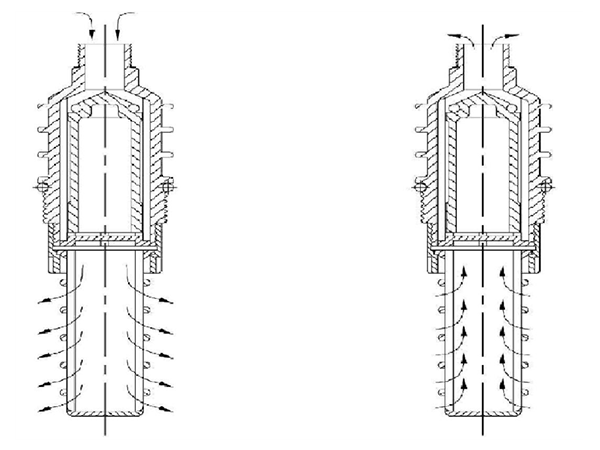

VACUUM BREAKER
