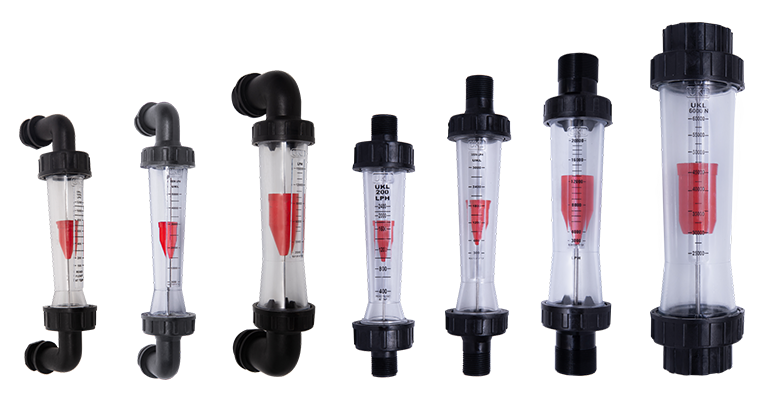

In-Line / Panel Mount Rotameter
| Meter Body Construction | Molded Polycarbonate |
| Accuracy | ± 4% of FSD |
| End Connectors | Polyproplylene |
| O-Ring Material | EPDM |
| Float Material | Engineering Thermoplastic |
| Temperature Limit | 60 °C |
| Pressure Limit | 10 Kg/cm² |
Complete range starting from 1/2″ end connections to 2 1/2″ end connections and flow range from 300lph model up to a maximum of 60000lph model
Available in In-line and Panel mount styles
One piece meter body injection molded tough polycarbonate
Quick Lock Half Union Adaptors
Permanent silk screen printing with black ink for optimum contrast
Enhanced meter readability using precision textured light admitting surface on the rear of the body
Bright red coloured float enhances the readability and visibility of the float

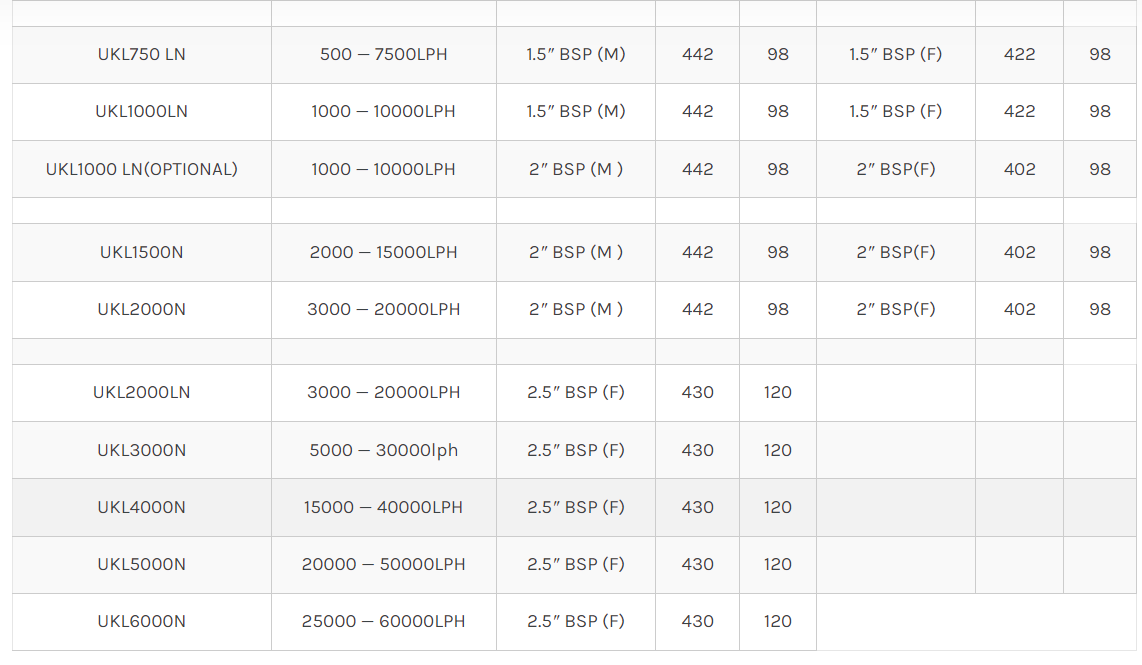

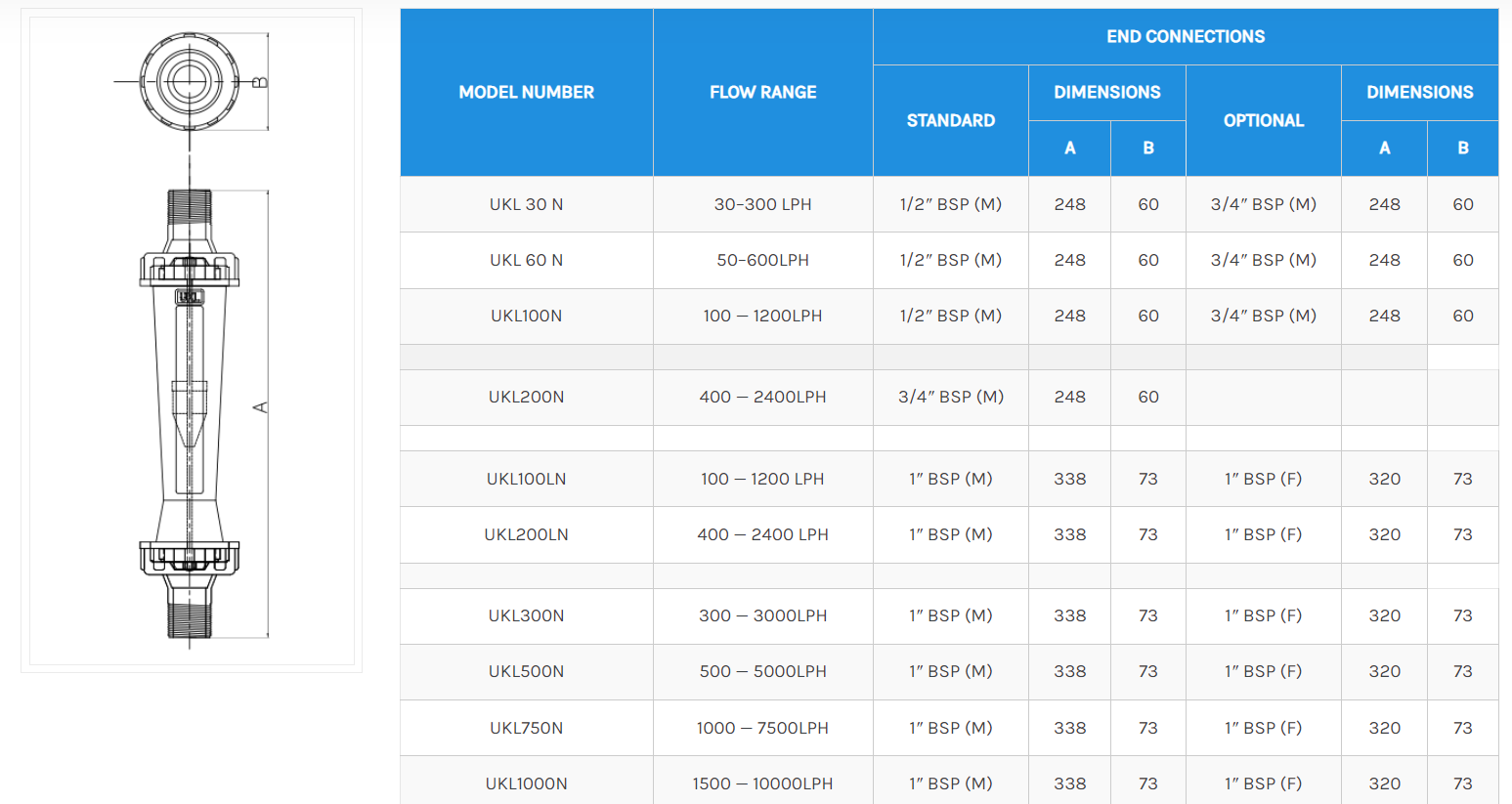

| MODEL NUMBER | FLOW RANGE | END CONNECTIONS | DIMENSION | |||
|---|---|---|---|---|---|---|
| A | B | C | D | |||
| UKL 30 N | 30–300 LPH | 1/2″ BSP (M) | 296 | 96 | 60 | 260 |
| UKL 60 N | 50–600 LPH | 1/2″ BSP (M) | 296 | 96 | 60 | 260 |
| UKL 100N | 100 — 1200 LPH | 1/2″ BSP (M) | 296 | 96 | 60 | 260 |
| UKL 30 N(optional) | 30–300 LPH | 3/4″ BSP (M) | 302 | 96 | 60 | 260 |
| UKL 60 N(optional) | 50–600 LPH | 3/4″ BSP (M) | 302 | 96 | 60 | 260 |
| UKL 100N(optional) | 100 — 1200 LPH | 3/4″ BSP (M) | 302 | 96 | 60 | 260 |
| UKL200N | 400 — 2400 LPH | 3/4″ BSP (M) | 302 | 96 | 60 | 260 |
| UKL100LN | 100 — 1200 LPH | 1″ BSP (M) | 388 | 122 | 73 | 338 |
| UKL200LN | 400 — 2400 LPH | 1″ BSP (M) | 388 | 122 | 73 | 338 |
| UKL300N | 300 — 3000LPH | 1″ BSP (M) | 388 | 122 | 73 | 338 |
| UKL500N | 500 — 5000LPH | 1″ BSP (M) | 388 | 122 | 73 | 338 |
| UKL750N | 1000 — 7500LPH | 1″ BSP (M) | 388 | 122 | 73 | 338 |
| UKL1000N | 1500 — 10000LPH | 1″ BSP (M) | 388 | 122 | 73 | 338 |
| UKL750LN | 1000 — 7500LPH | 1.5″ BSP (M) | 506 | 152 | 96 | 444 |
| UKL1000LN | 1500 — 10000LPH | 1.5″ BSP (M) | 506 | 152 | 96 | 444 |
| UKL1500N | 2000 — 15000LPH | 2″ BSP (M) | 512 | 152 | 96 | 440 |
| UKL2000N | 3000 — 20000LPH | 2″ BSP (M) | 512 | 152 | 96 | 440 |
