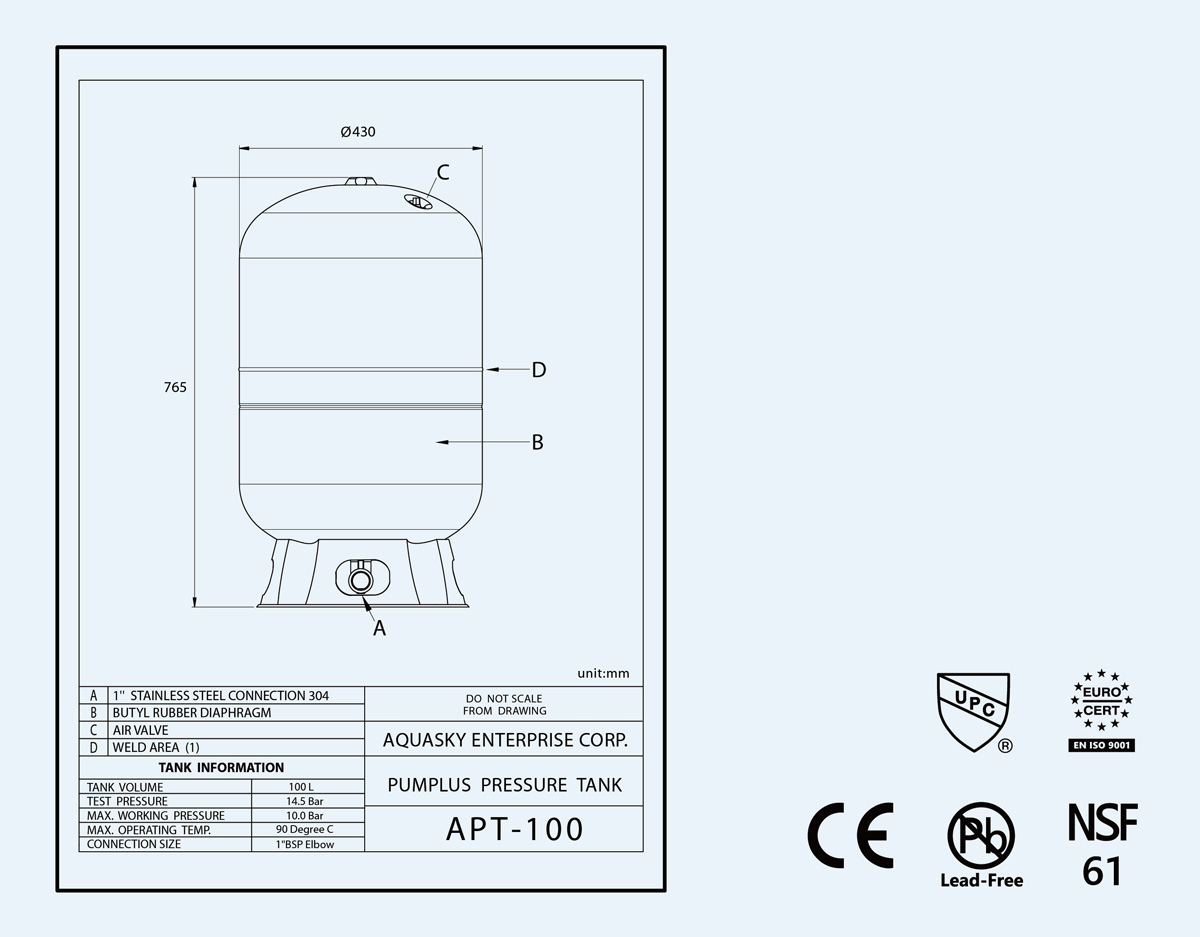

APT-100

Model Number APT 100
Total Tank Volume Liter 100
Gal 28
Diameter cm 43.0
inch 16.9
Height( Base Including) cm 76.5
inch 30.1
N.W. Kg 13.7
Lbs 30.2
G.W. Kg 15.6
Lbs 34.4
Shipping Volume CUF 5.72

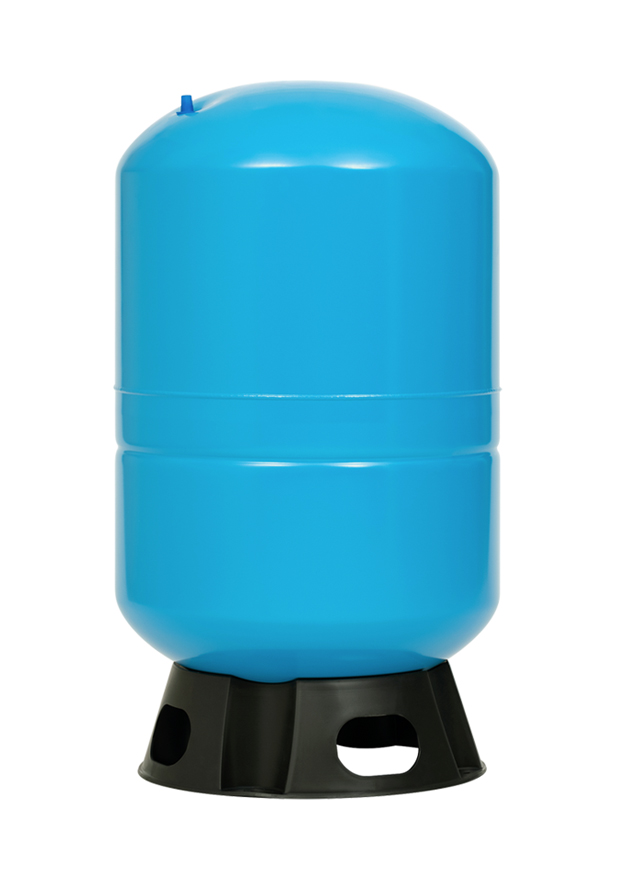

APT-100|Pressure Tank|CE, ISO9001, UPC|Aquasky

1. Suitable for 8~9 Faucets for ESP
2. Diaphragm membrane pressure tank for cold sanitary water circuits, pressurized systems, and storage systems
3. Rubber membrane produced according to the DIN 4807 regulation
4. High-performance variable geometry membrane
5. Polypropylene liner and the diaphragm membrane create a water zone to avoid water contact with the tank's metallic surface, so the tank is able to use for drinking water.
6. The Stainless steel water connector is a perfect connection for water pipe with lead-free and chemical-free.
7. 100% made in Taiwan
8. Produced according to the standards established by PED 2014/68/EU and EN 13831 regulations
9. Certification: CE, ISO9001, UPC, NSF58, NSF61, ACS, KC
10. High level of customization
11. Epoxy powder exterior painting to guarantee a high level of protection against oxidation and a fine aesthetic final quality
12. The industries ONLY fill 100% Nitrogen pre-charge pressure tank. To avoid temperature change creates pre-charge change.
13. Accurate and extensive first-rate quality controls during all manufacturing process phases. All products are 100% pressure tested.

PumPlus Pressure tank is an essential part of a pressurized water system that provides water pressure at a set level. The tank stores supplemental water between the diaphragm and liner, and the pressurized air chamber is able to create a supply circle. This process reduces the number of times the motor need to start in order for the system pressure to remain at the set level. Aquasky sale member acts and thinks like owners to attain solutions for our customers, anticipating challenges and proactively seeking resolutions. We rely on teamwork and diligence to sustain our partnerships. We do the right thing. We listen to our customers, we communicate honestly, and we deliver on our commitments. We want to make working with Aquasky as easy as possible for our customers. We want to be an extension of your company.

Aquasky pumplus APT-100 is 100% made in Taiwan and suitable for 8~9 Faucets for ESP.

Aquasky provides the most complete and standard products. PumPlus series products are exclusive for pressure tanks or storage water tanks to use. All PumPlus tanks are manufactured at our ISO 9001:2008 registered facilities. NSF Listed as the highest standard for a pressure tank. IAPMO and CE certified for the safest pressure vessel in the market. Aquasky pumplus products are produced according to the standards established by PED 2014/68/EU and EN 13831 regulations. Certification: CE, ISO9001, UPC, NSF58, NSF61, ACS, KC
