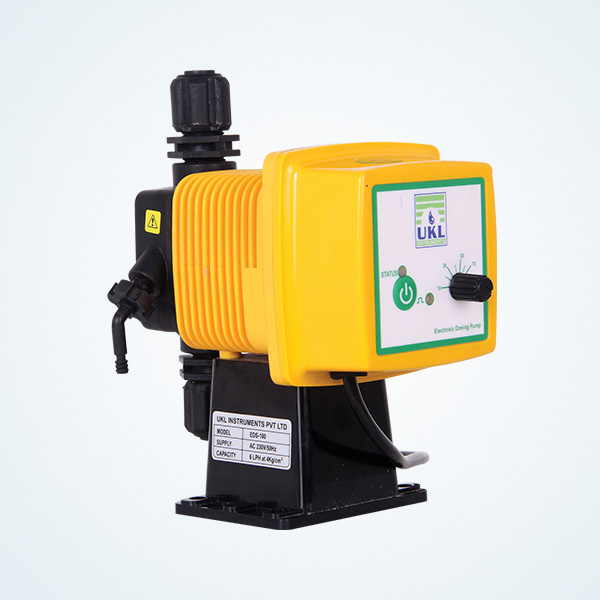

EDS Series - 1.5, 3, 6, 10, 21 LPH
Compact and good aesthetics
Double Ball NRV
Built in Air release valve
Solid PTFE diaphragm for longer life
Time tested electronics for reliable performance
Adjustable Stroke frequency
| Power Supply | 230 V AC 50hz |
| Liquid End | Glass filled Polypropylene |
| Valve Ball | Pyrex |
| Seals | Viton |
| Diaphragm | Solid PTFE diaphragm |
| Suction /Delivery Tubing | 4/6 mm LDPE tubing( 3metres length) |
| Stroke Frequency | 400 stokes per minute Maximum |
| Model | Capacity | Max. Injection Pressure |
|---|---|---|
| EDS 1.5 | 1.5 lph | 4 Kg/cm2 |
| EDS 3 | 3 lph | 4 Kg/cm2 |
| EDS 6 | 6 lph | 4 Kg/cm2 |
| EDS 10 | 10 lph | 4 Kg/cm2 |
| EDSA | 21 lph | Open to Atmosphere |
| A | 94.5 |
| B | 160 |
| C | 201 |
| D | 180 |
| E | 28 |
| F | 78 |

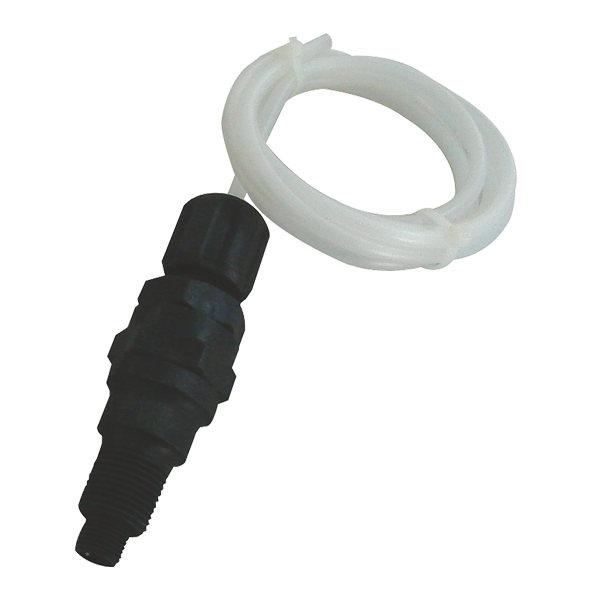

The injection check valve is a spring loaded nonreturn valve which prevents the water in the pressurized pipeline from returning back.

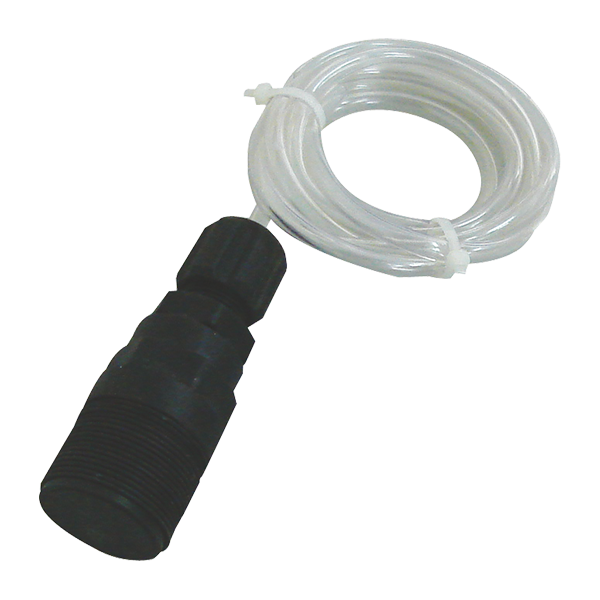

The foot valve is a non-return valve with a strainer to ensure that any dirt particles in the chemical being dosed is filtered before entering the pump.
